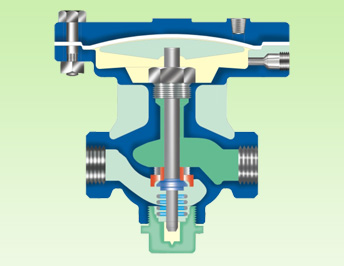

Technical Specification

Fluid Media	All gases and liquids compatible with materials of construction
Max. Rated Inlet Pressure	5000 PSIG
Outlet Pressure Range;	50-1500 PSIG
Design Proof Pressure	7000 PSIG
Design Burst Pressure	8000 PSIG
Materials	Body, S.S. 304/S.S. 316 all adjustable
Trims	S.S. & 17-4 PH
Flow Capacity	Main Valve CV=0.7, Vent Valve CV=0.35
Temperature	-17 to 170 C
Leakage	Bubble Tight CL VI
Ports	1/4", 3/8", 1/2" NPT/BSP

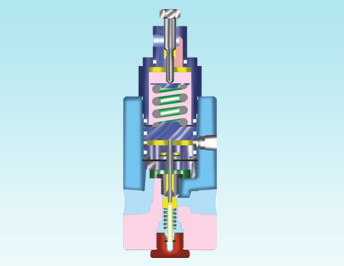

The DLR-44 Nutech-01 series regulator is a piston sensed, dome loaded, positive biased, pressure regulator. The positive bias provide a constant outlet pressure from 50-1500 PSI (3.4-105 BAR) greater than the reference pressure. Due to the self-vented feature, the outlet pressure can be vented through the regulator allowing downstream regulation even with a decreasing reference pressure. The DLR-44 Nutech-01 provides valve. A segregated vent allows the outlet pressure to be vented separately and eliminates mixing media with the reference pressure zone.

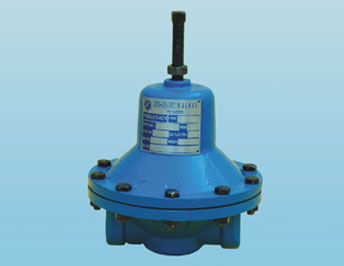

Technical Specification

Inlet Body Size	1/4", 3/8", 1/2", 3/4", 1", NPT/BSP
Bodies	C.S./Brass/Alloy Steel
Diaphragms Seats	Neoprene/Buna-N/302 ST. ST. Standard Metal
Trims	S.S./Brass/Alloy Steel

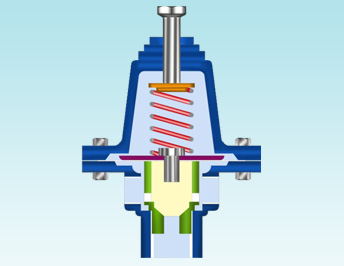

Pressure Reducing Valve : The model PRV-123 is Nutech's primary general service, self contained, back pressure, reducing, regulator. Unit handles back pressures 0 to 400 psig (27.6 barg) in multiple spring ranges. Model PR-123 is utilized for the majority of industrial back pressure reducing applications.

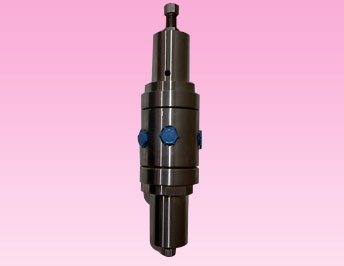

Technical Specification

Application	Air/Liquid/Gas
Inlet Size	3/8", 1/2", 3/4"
Inlet Pressure - Max	10000 PSI
Outlet Pressure - Max	9000 PSI
Orifice Size	0.5 to 1.0
Temperature Range	-55 to 90l
Material	C.S./Alloy Steel/NAB

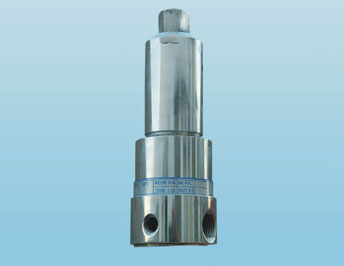

These controllers represents a new height in the achievements of continuous design and development improvements by Nu-Tech Valves. Series-1000/01 are compact light eshy to adjust, offered in three basic grades of material for bodies and spring housings.

Additional Typical Application :

Series-1000/01 controllers are designed for use with all gases and liquids compatible with the materials employed while we can offer faster delivery in standard materials. Special materials for aggressive conditions can be supplied on request.

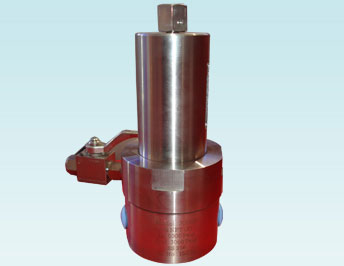

Technical Specification

Application	Air/Liquid/Gas
Sizes	1/2"3/4" NPT
Inlet Pressure-Max	5000 PSIG
Outlet Pressure-Max	0 to 4000 PSIG
Temperature Range	100 C
Orifice Size	1/8", 1/4", 3/8", 7/16", 1/2"5/8", 7/8"
Pressure Range	200, 300, 350, 450, 550, 1150*, 1650* PSI

Over pressurization protection : Protect the downstream piping system and the regulator's low pressure chambers against over pressurization due to possible regulator malfunction or failure to achieve complete lockup. The allowable outlet pressure is the lowest codes, state codes, Nu-Tech bulletin NEV-300 or other applicable standard. The method of protection can be relief valve, monitor regulator, shutoff device or similar mechanism.

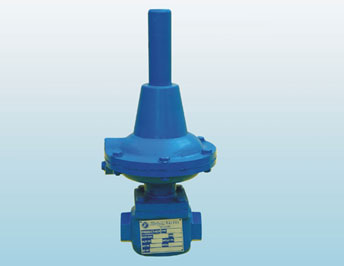

Technical Specification

Body Material	C.S./S.S.
Op. Temp. Range	-20 F to +150 F
Inlet Pressure Range	5 to 1000 PSIG
Outlet Pressure Range	3 to 200 PSIG

Environmental Conditions :

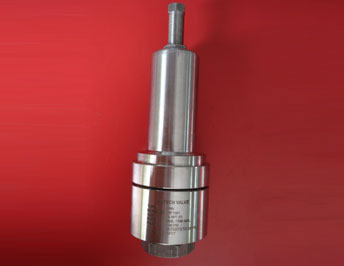

467 regulators are designed for outdoor and indoor installation.

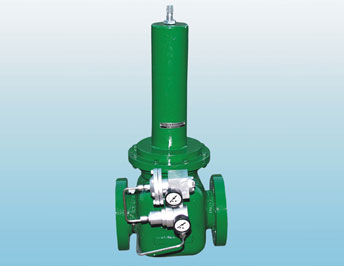

Technical Specification

Application	Air/Liquid/Gas/Steam
Valve Size	1" to 6", 150# to 300#
Inlet Pressure-Min/Max	10 PSI / 300 PSI
Outlet Pressure-Min/Max	5 PSI / 100 PSI
Temperature Range	150 F
Temperature Range	150 F
Body Material	C.S./Alloy Steel/Brass
Trim	S.S. 316/304/Brass

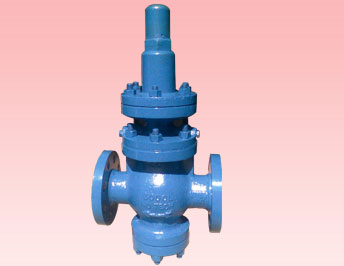

Valve Function

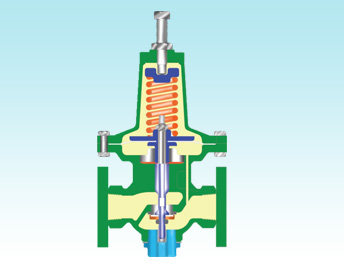

Inlet pressure acta upward on small balancing diaphragm (or piston in 21/2-3" sizes) to equalize downward pressure on valve disc, providing fully balanced action. Inlet pressure variations are equalized without affecting set-point. When the adjusting spring is compressed, it opens the main valve to admit fluid to down stream side. When the downstream pressure under the large diaphragm equals the force exerted by the adjusting spring, equilibrium is restored and the main valve maintains flow of the set down stream pressure. Simply designed, your Nu-Tech hi-flow is slated for a long, trouble-free life. Standard renewable parts never need special fitting or machining. Here's a rugged regulator built to absorb hydraulic system shocks that upset ordinary valves.

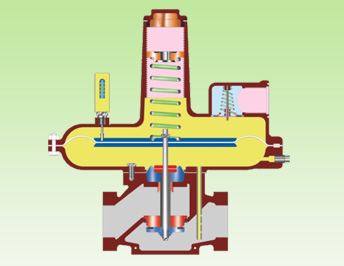

Technical Specification

Valve Size	1", 1 1/4", 1 1/2", 2", 2 1/2" screwed/Flenged end
Outlet Pressure	1 1/2" W. C. to 2 PSI
Diaphragm Case	Die Cast Aluminum / CS / SS
inlet Pressure	15 PSI
Body Material	C.S./CF8/CF8M
Spring	Color coated spring steel material

• Double Acting Vent Damper : Assure fast response plus stable operation.
• Internal Control Tube : Engineered for accurate pressure control.
• Removable orifice : Precision knife-edge plus molded soft seats assure positive tight shutoff orifice in 3/4", 1" and 1 1/4"
